TRIAC with 600V DC rated voltage and 16A RMS current. Features 600V repetitive reverse voltage, 168A peak surge current, and 50mA hold current. Packaged in a TO-220AB insulated case with tin matte plating and through-hole mounting. Operates from -40°C to 125°C, with 2.5kV isolation voltage. UL recognized, lead-free, and RoHS compliant.
PackageTO-220AB
Current Rating16A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics BTA16-600BWRG technical specifications.
General
Additional Feature
UL RECOGNIZED
Case Connection
Isolated
Package/Case
TO-220AB
Contact Plating
Tin, Matte
Current Rating
16A
Height
9.3mm
Hold Current
50mA
Isolation Voltage
2.5kV
JESD-30 Code
R-PSFM-T3
Lead Free
Lead Free
Length
10.4mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Mount
Through Hole
Number of Elements
1
Package Body Material
Plastic
Package Quantity
1000
Package Shape
Rectangular
Packaging
Rail/Tube
Peak Reflow Temperature (Cel)
245°C
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
16A
RoHS Compliant
Yes
Series
Snubberless™
Surface Mount
No
Terminal Finish
Tin
Terminal Form
Through Hole
Terminal Position
SINGLE
DC Rated Voltage
600V
Weight
0.211644oz
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics BTA16-600BWRG Datasheet
Download the complete datasheet for Stmicroelectronics BTA16-600BWRG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

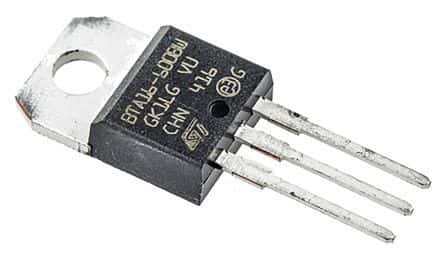

Product Images
