High-performance TRIAC for AC power control, featuring a 600V repetitive peak off-state voltage and 25A RMS current rating. This component offers a 260A peak on-state current and a 75mA holding current. Encased in a TO-220AB package with tin-matte plating, it supports through-hole mounting and operates across a -40°C to 125°C temperature range. The insulated package provides 2.5kV isolation voltage, and the device is RoHS compliant.
PackageTO-220AB
Current Rating25A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics BTA24-600BWRG technical specifications.
General
| Package/Case | TO-220AB |
| Contact Plating | Tin, Matte |
| Current Rating | 25A |
| Height | 9.3mm |
| Hold Current | 75mA |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 25A |
| RoHS Compliant | Yes |
| Series | Snubberless™ |
| Termination | Through Hole |
| DC Rated Voltage | 600V |
| Weight | 0.211644oz |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics BTA24-600BWRG Datasheet
Download the complete datasheet for Stmicroelectronics BTA24-600BWRG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

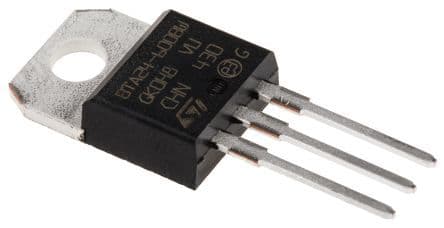

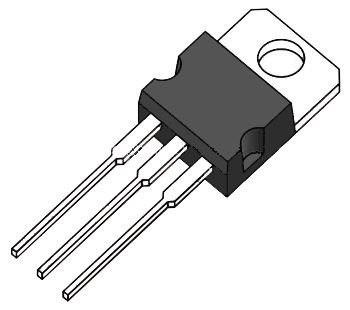

Product Images
