High-performance TRIAC with 800V repetitive peak off-state voltage and 25A RMS current rating. Features a 3-pin TO-220AB insulated package for through-hole mounting. Offers a peak on-state current of 260A and a hold current of 75mA. Operates across a wide temperature range from -40°C to 125°C. This RoHS and Lead Free compliant component is supplied in a rail/tube package.
PackageTO-220AB
Current Rating25A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics BTA24-800BWRG technical specifications.
General
| Package/Case | TO-220AB |
| Current Rating | 25A |
| Height | 15.9mm |
| Hold Current | 75mA |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 25A |
| RoHS Compliant | Yes |
| Series | Snubberless™ |
| DC Rated Voltage | 800V |
| Weight | 0.211644oz |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics BTA24-800BWRG Datasheet
Download the complete datasheet for Stmicroelectronics BTA24-800BWRG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

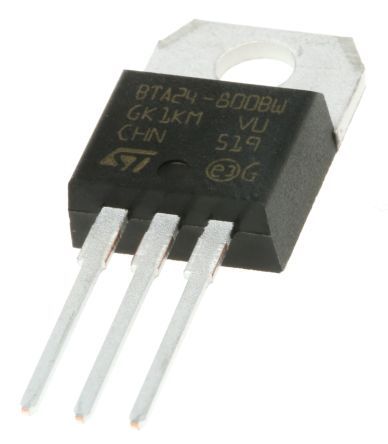

Product Images
