Current Rating40A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics BTA41-800BRG technical specifications.
General
Contact Plating
Tin, Matte
Current Rating
40A
Height
12.85mm
Hold Current
80mA
Lead Free
Lead Free
Length
15.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
800V
Mount
Through Hole
Package Quantity
600
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
40A
RoHS Compliant
Yes
DC Rated Voltage
800V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics BTA41-800BRG Datasheet
Download the complete datasheet for Stmicroelectronics BTA41-800BRG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

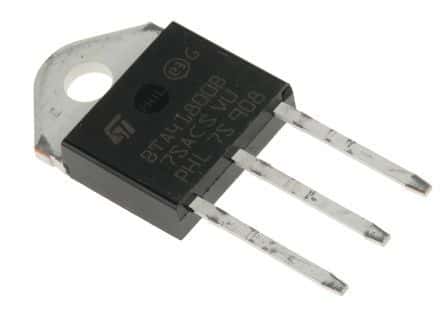

Product Images
