PackageTO-220AB
Current Rating16A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics BTB16-600BWRG technical specifications.
General
| Package/Case | TO-220AB |
| Contact Plating | Tin, Matte |
| Current Rating | 16A |
| Height | 9.3mm |
| Hold Current | 50mA |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 16A |
| RoHS Compliant | Yes |
| Series | Snubberless™ |
| DC Rated Voltage | 600V |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics BTB16-600BWRG Datasheet
Download the complete datasheet for Stmicroelectronics BTB16-600BWRG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

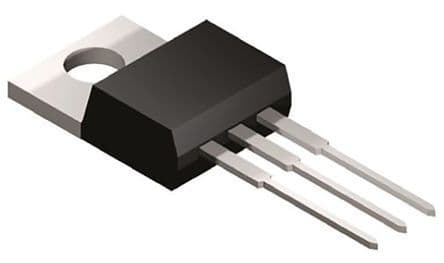

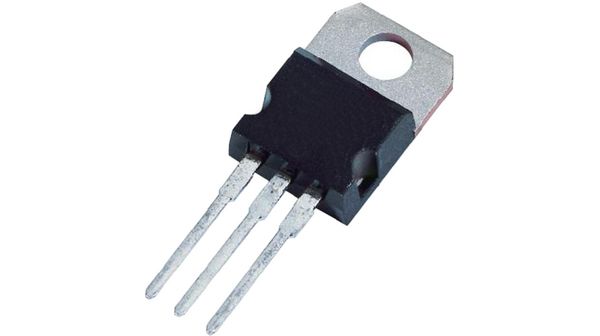

Product Images
