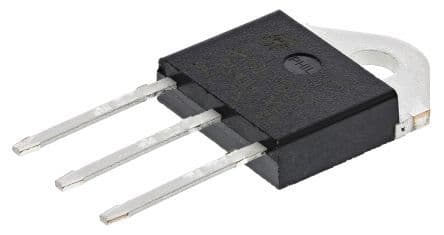

The BTW69-800RG is a silicon controlled rectifier from Stmicroelectronics with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It has a maximum repetitive reverse voltage of 800V and a peak non-repetitive surge current of 580A. The device is RoHS compliant and has a current rating of 50A. It is packaged in a through hole package with a weight of 0.238311oz and dimensions of 15.5mm in length, 4.6mm in width, and 12.85mm in height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics BTW69-800RG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Plating | Tin, Matte |
| Current Rating | 50A |
| Height | 12.85mm |
| Hold Current | 150mA |
| Lead Free | Lead Free |
| Length | 15.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Mount | Through Hole |
| Package Quantity | 600 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 580A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 50A |
| RoHS Compliant | Yes |
| DC Rated Voltage | 800V |
| Weight | 0.238311oz |
| Width | 4.6mm |
| RoHS | Compliant |
