Automotive-grade NPN power Darlington transistor designed for ignition coil driving. Features a 400V collector-emitter breakdown voltage and a maximum collector current of 10A. This through-hole component, housed in a TO-220 package, offers a low collector-emitter saturation voltage of 1.8V and a minimum hFE of 300. Operating across a wide temperature range from -65°C to 175°C, it boasts a power dissipation of 125W and is RoHS compliant.
PackageTO-220
Current Rating10A
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
Stmicroelectronics BU931T technical specifications.
General
Package/Case
TO-220
Collector Emitter Breakdown Voltage
400V
Collector Emitter Saturation Voltage
1.8V
Collector Emitter Voltage (VCEO)
400V
Collector-emitter Voltage-Max
1.8V
Contact Plating
Tin, Matte
Current Rating
10A
Emitter Base Voltage (VEBO)
5V
Height
15.75mm
hFE Min
300
Lead Free
Lead Free
Length
10.4mm
Max Collector Current
10A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Power Dissipation
125W
Mount
Through Hole
Number of Elements
1
Package Quantity
1000
Packaging
Rail/Tube
Polarity
NPN
Power Dissipation
125W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q101
DC Rated Voltage
400V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics BU931T Datasheet
Download the complete datasheet for Stmicroelectronics BU931T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

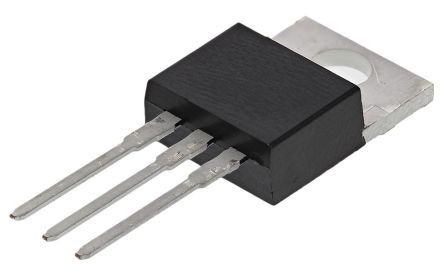

Product Images
