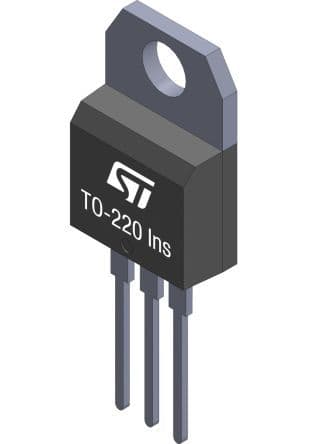

NPN Power Darlington Transistor for high-voltage ignition coil driving. Features a 350V Collector Emitter Breakdown Voltage and 15A Continuous Collector Current. Offers a low 1.8V Collector Emitter Saturation Voltage and a minimum hFE of 300. Packaged in a TO-220-3 through-hole mount, this RoHS compliant component operates from -65°C to 175°C with a 150W power dissipation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics BU941ZT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220-3 |
| Collector Emitter Breakdown Voltage | 350V |
| Collector Emitter Saturation Voltage | 1.8V |
| Collector Emitter Voltage (VCEO) | 350V |
| Collector-emitter Voltage-Max | 1.8V |
| Continuous Collector Current | 15A |
| Current Rating | 15A |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 9.15mm |
| hFE Min | 300 |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Collector Current | 15A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 150W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Polarity | NPN |
| Power Dissipation | 150W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | AUTOMOTIVE |
| DC Rated Voltage | 350V |
| Weight | 0.211644oz |
| Width | 4.6mm |
| RoHS | Compliant |
