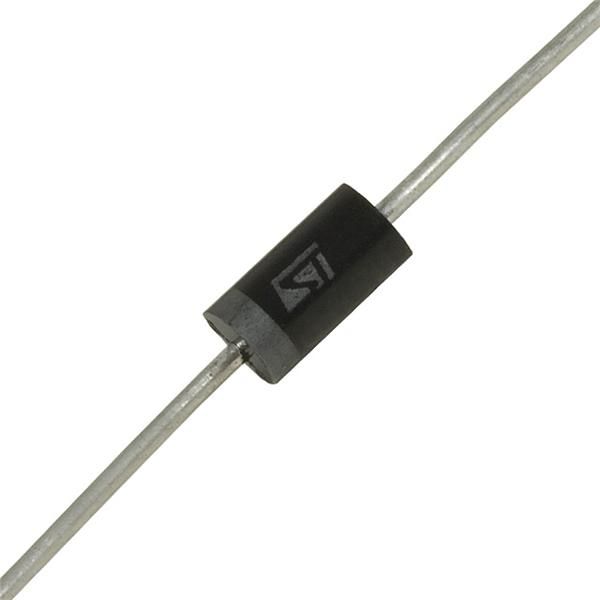

The BZW06-13BRL is a transient voltage suppressor from Stmicroelectronics with a clamping voltage of 27.2V and a peak pulse power of 600W. It operates within a temperature range of -65°C to 175°C and is packaged in a DO-15 plastic package. The device is RoHS compliant and available in quantities of 6000 per reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics BZW06-13BRL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 1.9nF |
| Package/Case | DO-15 |
| Clamping Voltage | 27.2V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Surge Current | 1mA |
| Operating Supply Voltage | 12.8V |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| RoHS Compliant | Yes |
| Series | BZW06 |
| RoHS | Compliant |
Download the complete datasheet for Stmicroelectronics BZW06-13BRL to view detailed technical specifications.
