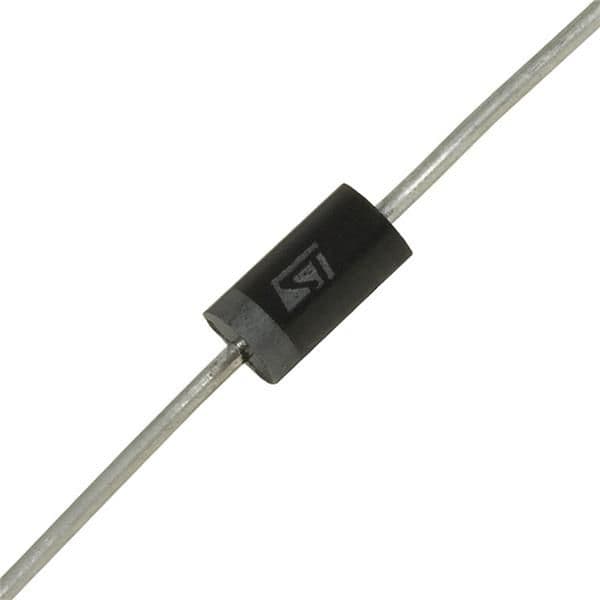

The BZW06-26RL transient voltage suppressor is a unidirectional device with a clamping voltage of 53.5V and a capacitance of 1.075nF. It is packaged in a DO-15 package and is suitable for operating temperatures between -65°C and 175°C. The device can withstand a maximum surge current of 1mA and a peak pulse power of 600W. It is RoHS compliant and available in quantities of 6000 per reel.
Checking distributor stock and pricing after the page loads.
| Capacitance | 1.075nF |
| Package/Case | DO-15 |
| Clamping Voltage | 53.5V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Surge Current | 1mA |
| Operating Supply Voltage | 25.6V |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| RoHS Compliant | Yes |
| Series | BZW06 |
| RoHS | Compliant |
