600W Transient Voltage Suppressor (TVS) diode in a DO-15 package. Features a 376V reverse standoff voltage, 418V minimum breakdown voltage, and 776V clamping voltage. Offers 600W peak pulse power dissipation and 5.7A peak pulse current handling. Operates across a -65°C to 175°C temperature range with 1uA leakage current. Through-hole mount with tin, matte contact plating.
PackageDO-15
Capacitance350pF
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics BZW06-376RL technical specifications.
General
| Capacitance | 350pF |
| Package/Case | DO-15 |
| Clamping Voltage | 776V |
| Contact Plating | Tin, Matte |
| Diameter | 3.53mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | No |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 6.75mm |
| Min Breakdown Voltage | 418V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 1mA |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 376V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 5.7A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 418V |
| Reverse Standoff Voltage | 376V |
| RoHS Compliant | Yes |
| Series | BZW06, TRANSIL™ |
| DC Rated Voltage | 376V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics BZW06-376RL Datasheet
Download the complete datasheet for Stmicroelectronics BZW06-376RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

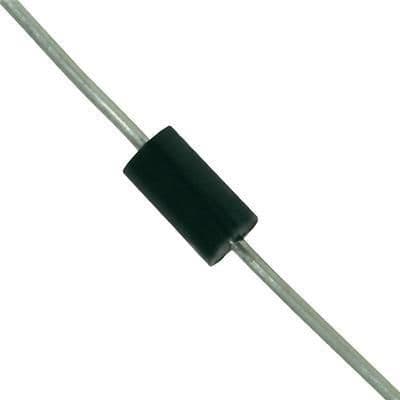

Product Images
