PackageDO-15
Capacitance500pF
MountingThrough Hole
PolarityBidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics BZW06-85B technical specifications.
General
Capacitance
500pF
Package/Case
DO-15
Clamping Voltage
178V
Diode Type
ZENER
Min Breakdown Voltage
95V
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Surge Current
4.4A
Mount
Through Hole
Number of Bidirectional Channels
1
Operating Supply Voltage
85.5V
Package Quantity
1000
Packaging
Tape and Reel
Peak Pulse Current
22.5A
Peak Pulse Power
600W
Polarity
Bidirectional
Power Line Protection
No
Reverse Standoff Voltage
85.5V
RoHS Compliant
Yes
Series
BZW06, TRANSIL™
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics BZW06-85B Datasheet
Download the complete datasheet for Stmicroelectronics BZW06-85B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

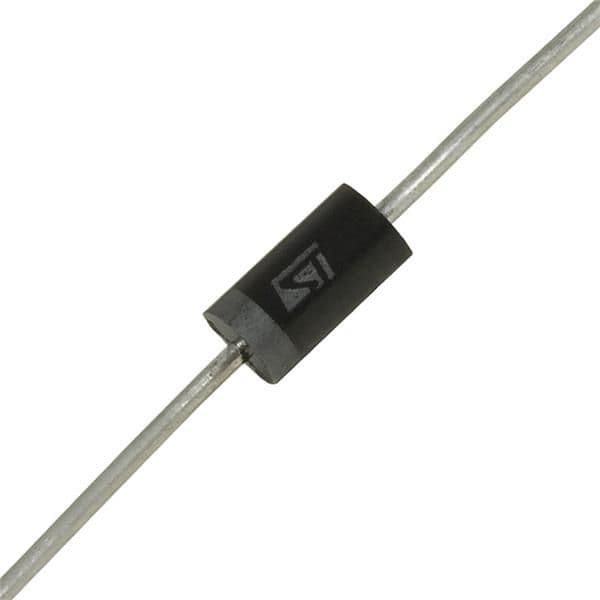

Product Images
