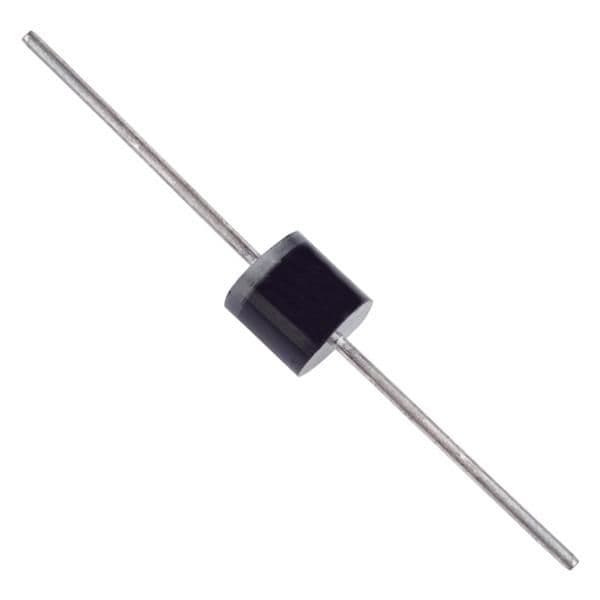

The BZW50-68RL is a unidirectional Zener diode with a breakdown voltage of 75.6V and a clamping voltage of 157V. It has a maximum operating temperature range of -65°C to 175°C and is available in a 2-pin package. The device is RoHS compliant and has a maximum power dissipation of 5kW. It is designed for use in applications requiring transient voltage suppression.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics BZW50-68RL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Stmicroelectronics BZW50-68RL technical specifications.
| Capacitance | 3nF |
| Package/Case | R |
| Clamping Voltage | 157V |
| Diode Type | ZENER |
| Min Breakdown Voltage | 75.6V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 5kW |
| Max Surge Current | 1mA |
| Mount | Through Hole |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 68V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 382A |
| Peak Pulse Power | 5kW |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 68V |
| RoHS Compliant | Yes |
| Series | BZW50, TRANSIL™ |
| RoHS | Compliant |
Download the complete datasheet for Stmicroelectronics BZW50-68RL to view detailed technical specifications.
