Mono 40W Class-AB Automotive Audio Amplifier IC. Features 40W maximum output power, 6A output current, and 30dB gain. Operates from 8V to 18V supply voltage with a typical 15V operating voltage. Offers 65dB common mode rejection ratio and 10uA input bias current. Surface mountable in a 20-pin PowerSO package, with a wide operating temperature range of -40°C to 150°C.
MountingSurface Mount
Power40W
Quick Jump:
Technical Specifications
Stmicroelectronics E-TDA7391PDTR technical specifications.
General
| Common Mode Rejection Ratio | 65dB |
| Gain | 30dB |
| Height | 3.3mm |
| Input Bias Current | 10uA |
| Input Type | DIFFERENTIAL |
| Length | 16mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 40W |
| Max Power Dissipation | 32W |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Voltage | 15V |
| Output Current | 6A |
| Output Power | 40W |
| Package Quantity | 600 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | AUTOMOTIVE |
| Supply Type | Single |
| Weight | 0.067021oz |
| Width | 11.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics E-TDA7391PDTR Datasheet
Download the complete datasheet for Stmicroelectronics E-TDA7391PDTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

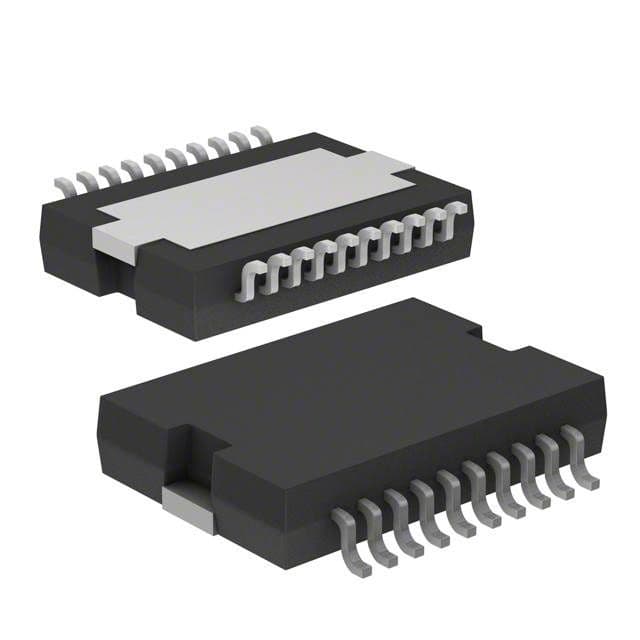

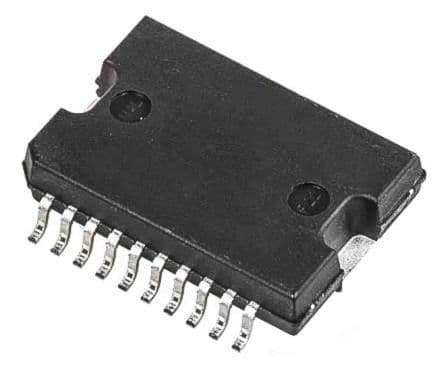

Product Images
