Dual-channel common mode choke for power and signal lines, offering -34dB attenuation up to 6GHz. Features a 200mA current rating, 2.5 Ohm DC resistance, and a compact QFN surface-mount package. Operates across a -40°C to 85°C temperature range with a minimum breakdown voltage of 6V. Packaged in tape and reel for automated assembly.
PackageQFN
Current200mA
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ECMF02-2AMX6 technical specifications.
General
Attenuation Value
-34dB
Bandwidth
6GHz
Package/Case
QFN
Current
200mA
Current Rating
200mA
DC Resistance (DCR)
2.5R
DC Resistance-Max
2.5R
Depth
1.55mm
Height
0.022inch
Lead Free
Lead Free
Length
1.75mm
Min Breakdown Voltage
6V
Max Current Rating
200mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Channels
2
Number of Lines
2
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECMF
Series Resistance
2.5R
Termination
Flat
Width
0.059inch
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ECMF02-2AMX6 Datasheet
Download the complete datasheet for Stmicroelectronics ECMF02-2AMX6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

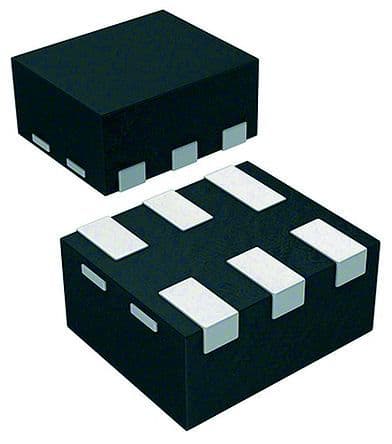

Product Images
