8-channel, low-pass EMI/RFI filter featuring an LC circuit design for board mount applications. Offers -35dB attenuation with 18pF capacitance and 20 Ohm series resistance. This surface mount component, housed in a QFN package, provides ESD protection and operates within a -40°C to +85°C temperature range. Rated for 100nA current and a breakdown voltage between 6V and 16V, it is lead-free and RoHS compliant.
PackageQFN
Capacitance18pF
Current Rating100nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics EMIF08-LCD04M16 technical specifications.
General
Attenuation Value
-35dB
Capacitance
18pF
Package/Case
QFN
Current Rating
100nA
Direction
Unidirectional
ESD Protection
Yes
Height
0.5mm
Lead Free
Lead Free
Length
3.3mm
Max Breakdown Voltage
16V
Min Breakdown Voltage
6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reverse Leakage Current
100nA
Mount
Surface Mount
Number of Channels
8
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reverse Standoff Voltage
3V
RoHS Compliant
Yes
Series
IPAD™
Series Resistance
20R
Termination
SMD/SMT
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics EMIF08-LCD04M16 Datasheet
Download the complete datasheet for Stmicroelectronics EMIF08-LCD04M16 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

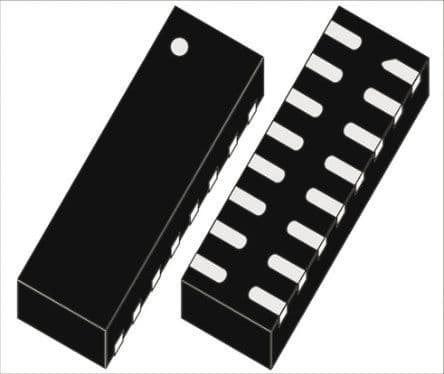

Product Images
