Quad Transil array for ESD protection, featuring four unidirectional ZENER diode elements. This surface mount device offers 300W peak pulse power dissipation and 60pF capacitance per channel. It provides 25V minimum breakdown voltage and 40V clamping voltage, with a maximum reverse leakage current of 1µA. Operating voltage is 24V, and it is RoHS compliant, packaged in a SOT-23 case.
PackageSOT-23
Capacitance60pF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ESDA25SC6 technical specifications.
General
| Capacitance | 60pF |
| Package/Case | SOT-23 |
| Clamping Voltage | 40V |
| Depth | 1.75mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 3.05mm |
| Min Breakdown Voltage | 25V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 300W |
| Max Repetitive Reverse Voltage (Vrrm) | 24V |
| Max Reverse Leakage Current | 1uA |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 24V |
| Packaging | Tape and Reel |
| Peak Pulse Power | 300W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 25V |
| Reverse Standoff Voltage | 24V |
| RoHS Compliant | Yes |
| Series | ESDA, TRANSIL™ |
| Termination | SMD/SMT |
| DC Rated Voltage | 25V |
| Width | 1.75mm |
| Working Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics ESDA25SC6 Datasheet
Download the complete datasheet for Stmicroelectronics ESDA25SC6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

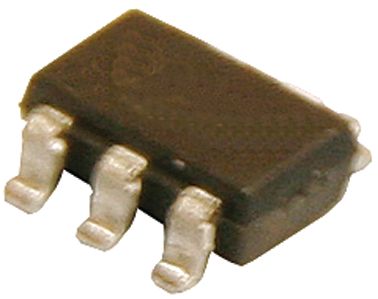

Product Images
