Unidirectional Transient Voltage Suppressor (TVS) diode in a SOT-23 package, offering robust ESD protection. Features a 3V reverse standoff voltage, 5.3V minimum breakdown voltage, and 5.9V maximum breakdown voltage. Clamping voltage is 8.75V with a peak pulse current of 15A and peak pulse power of 500W. Capacitance is 280pF, with a low leakage current of 2uA. Operates across a wide temperature range of -40°C to 125°C.
PackageSOT-23
Capacitance280pF
Voltage Rating5.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ESDA5V3SC6 technical specifications.
General
| Capacitance | 280pF |
| Package/Case | SOT-23 |
| Clamping Voltage | 8.75V |
| Depth | 1.75mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Leakage Current | 2uA |
| Length | 3.05mm |
| Max Breakdown Voltage | 5.9V |
| Min Breakdown Voltage | 5.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500W |
| Max Reverse Leakage Current | 2uA |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 1.25V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 15A |
| Peak Pulse Power | 500W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5.3V |
| Reverse Standoff Voltage | 3V |
| RoHS Compliant | Yes |
| Series | ESDA, TRANSIL™ |
| Termination | SMD/SMT |
| DC Rated Voltage | 5.3V |
| Width | 1.75mm |
| Working Voltage | 5.3V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics ESDA5V3SC6 Datasheet
Download the complete datasheet for Stmicroelectronics ESDA5V3SC6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

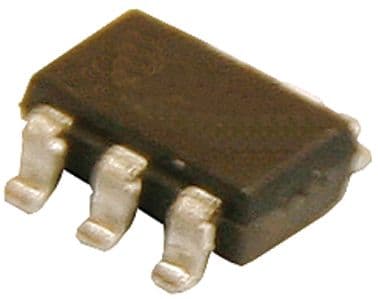

Product Images
