STMICROELECTRONICS

ESDALC6V1P6

Datasheet

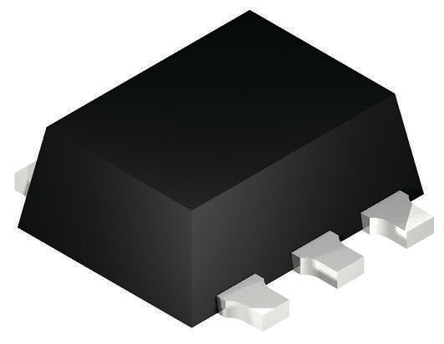

4-Ch Unidirectional TVS Diode Array, 6.1V, 7.5pF, SOT-666

Stmicroelectronics

ESDALC6V1P6

Name: ESDALC6V1P6 Stmicroelectronics
Brand: Stmicroelectronics
SKU: ESDALC6V1P6

4-Ch Unidirectional TVS Diode Array, 6.1V, 7.5pF, SOT-666

Low capacitance TRANSIL array for ESD protection, featuring four unidirectional ZENER diodes. This surface mount component offers a minimum breakdown voltage of 6.1V and a maximum of 7.2V, with a low leakage current of 100nA. Designed for robust electrostatic discharge protection, it operates at a voltage of 3V and boasts a peak pulse power of 30W. The SOT-666 package measures 1.7mm x 1.3mm x 0.6mm, with a capacitance of 7.5pF per line, and operates across a temperature range of -40°C to 150°C.

PackageSOT-666

Capacitance7.5pF

Voltage Rating3V

MountingSurface Mount

Quick Jump:

Technical Specifications

Stmicroelectronics ESDALC6V1P6 technical specifications.

General

Capacitance	7.5pF
Package/Case	SOT-666
Depth	1.3mm
Diode Type	ZENER
Direction	Unidirectional
ESD Protection	Yes
Height	0.6mm
Lead Free	Lead Free
Leakage Current	100nA
Length	1.7mm
Max Breakdown Voltage	7.2V
Min Breakdown Voltage	6.1V
Max Operating Temperature	150°C
Min Operating Temperature	-40°C
Max Power Dissipation	30W
Max Reverse Leakage Current	100nA
Mount	Surface Mount
Number of Channels	4
Number of Elements	4
Number of Unidirectional Channels	4
Operating Supply Voltage	3V
Packaging	Tape and Reel
Peak Pulse Power	30W
Polarity	Unidirectional
Power Line Protection	No
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Breakdown Voltage	6.1V
Reverse Standoff Voltage	3V
RoHS Compliant	Yes
Series	ESDA, TRANSIL™
Termination	SMD/SMT
DC Rated Voltage	6.1V
Width	1.3mm
Working Voltage	3V
