Triple-axis accelerometer with selectable full-scale ranges of ±100g, ±200g, or ±400g. Features a 500Hz bandwidth and 16-bit resolution, providing precise motion detection. Operates from a 2.16V to 3.6V supply and communicates via I2C or SPI digital interfaces. This surface-mount component is housed in a 3mm x 3mm TFLGA package and is RoHS compliant.
PackageTFLGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics H3LIS331DLTR technical specifications.
General
Axis
X, Y, Z
Bandwidth
500Hz
Package/Case
TFLGA
Depth
3mm
Interface
I2C, SPI
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.16V
Mount
Surface Mount
Output Type
SPI, I2C, Digital
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
16b
RoHS Compliant
Yes
Sensor Type
3 Axis
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics H3LIS331DLTR Datasheet
Download the complete datasheet for Stmicroelectronics H3LIS331DLTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

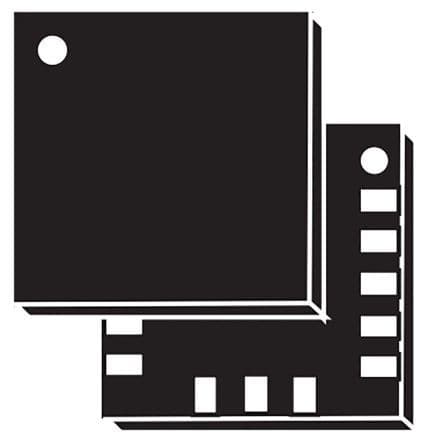

Product Images
