CMOS Hex Inverter IC featuring six independent inverter gates. Operates with a supply voltage range of 3V to 20V, with a nominal 20V. Offers a high level output current of -2.4mA and a low level output current of 2.4mA, with a general output current of 6.8mA. Packaged in a surface-mount SOP, this RoHS compliant component has a maximum operating temperature of 125°C.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics HCF4069UM013TR technical specifications.
General
| Package/Case | SOP |
| High Level Output Current | -2.4mA |
| Lead Free | Lead Free |
| Logic Function | Inverter |
| Low Level Output Current | 2.4mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 20V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Circuits | 6 |
| Number of Elements | 6 |
| Number of Functions | 6 |
| Number of Gates | 6 |
| Number of Inputs | 1 |
| Output Current | 6.8mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 110ns |
| Quiescent Current | 5uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 4000 |
| Supply Voltage-Nom | 20V |
| Technology | CMOS |
| Turn-On Delay Time | 50ns |
| Weight | 0.008501oz |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics HCF4069UM013TR Datasheet
Download the complete datasheet for Stmicroelectronics HCF4069UM013TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

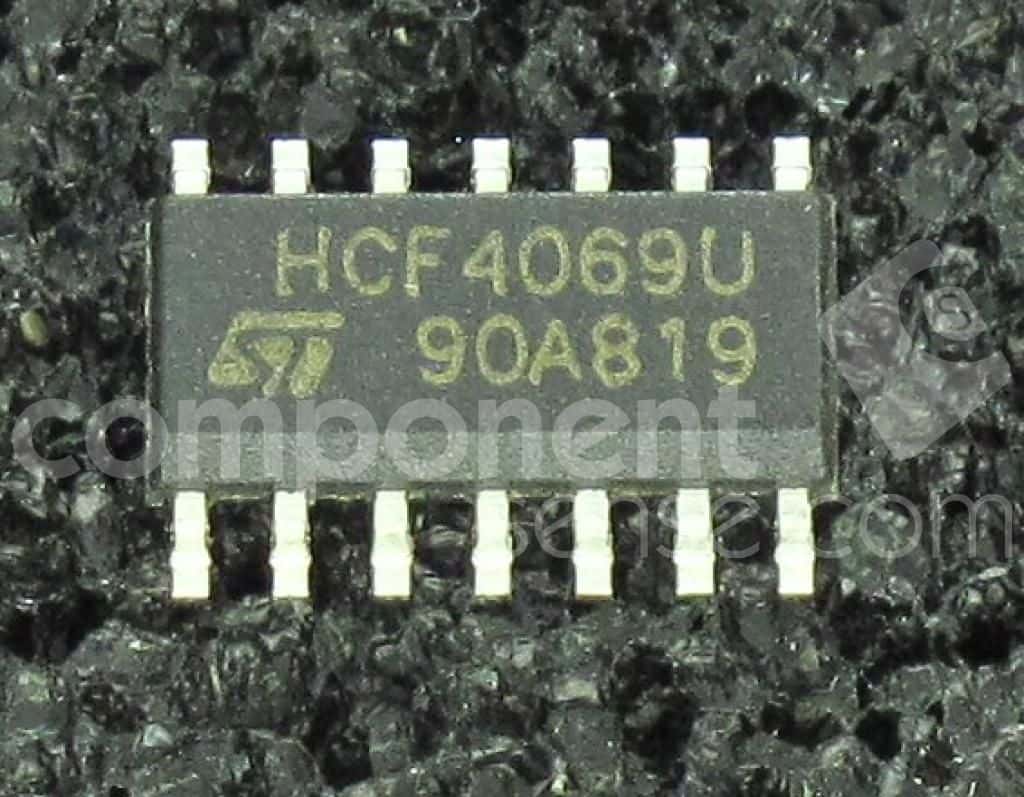

Product Images
