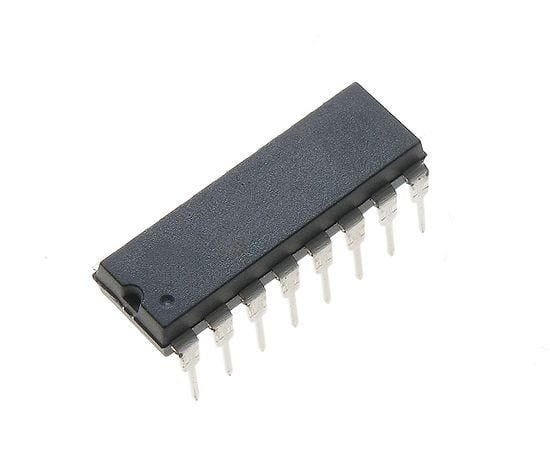

PackagePDIP
Quick Jump:
Technical Specifications
Stmicroelectronics HCF4072BEY technical specifications.
General
| Package/Case | PDIP |
| High Level Output Current | -2.4mA |
| Logic Function | OR GATE |
| Low Level Output Current | 2.4mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 20V |
| Min Supply Voltage | 3V |
| Number of Circuits | 2 |
| Number of Gates | 2 |
| Number of Inputs | 4 |
| Output Current | 6.8mA |
| Packaging | Rail/Tube |
| Propagation Delay | 350ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics HCF4072BEY Datasheet
Download the complete datasheet for Stmicroelectronics HCF4072BEY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
