Single operational amplifier featuring a 100 kHz bandwidth and 80 dB voltage gain. This power amplifier offers a 3.5A output current per channel and operates from a 6V to 18V dual supply voltage range. With a slew rate of 8V/µs and a 10mV input offset voltage, it is housed in a 5-pin Pentawatt through-hole package. The component boasts a 70dB common mode rejection ratio and 60dB power supply rejection ratio, with a maximum power dissipation of 20W.
Current40mA
MountingThrough Hole
Power20W
Quick Jump:
Technical Specifications
Stmicroelectronics L165V technical specifications.
General
| Amplifier Type | POWER |
| Bandwidth | 100kHz |
| Common Mode Rejection Ratio | 70dB |
| Dual Supply Voltage | 15V |
| Gain | 80dB |
| Height | 9.2mm |
| Input Bias Current | 1uA |
| Input Offset Voltage (Vos) | 10mV |
| Input Offset Voltage-Max | 10mV |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 6V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 18V |
| Mount | Through Hole |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 40mA |
| Output Current | 3A |
| Output Current per Channel | 3.5A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 20W |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 8V/µs |
| Slew Rate-Nom | 8V/µs |
| Supply Current | 40mA |
| Technology | BIPOLAR |
| Voltage Gain | 80dB |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L165V Datasheet
Download the complete datasheet for Stmicroelectronics L165V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

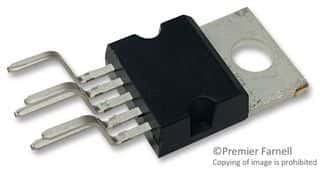

Product Images
