Dual power operational amplifier featuring a general-purpose amplifier type with a 350kHz gain bandwidth product. This surface mount IC offers two channels, each capable of 1A output current, and operates with a dual supply voltage range of 2V to 14V. Key specifications include a 250kHz bandwidth, 60dB common mode rejection ratio, and a 1V/µs slew rate. Housed in a SOIC package, this RoHS compliant component is designed for a wide operating temperature range of -40°C to 85°C.
PackageSOIC
Current8mA
MountingSurface Mount
Power5W
Quick Jump:
Technical Specifications
Stmicroelectronics L272D technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
250kHz
Package/Case
SOIC
Common Mode Rejection Ratio
60dB
Dual Supply Voltage
9V
Gain Bandwidth Product
350kHz
Height
1.65mm
Input Bias Current
2.5uA
Input Offset Voltage (Vos)
60mV
Input Offset Voltage-Max
60mV
Lead Free
Lead Free
Length
10mm
Max Dual Supply Voltage
14V
Min Dual Supply Voltage
2V
Max Input Voltage
28V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
28V
Min Supply Voltage
4V
Mount
Surface Mount
Nominal Input Voltage
10uV
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
8mA
Operating Supply Voltage
14V
Output Current
1A
Output Current per Channel
1A
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
5W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
1V/µs
Slew Rate-Nom
1V/µs
Supply Current
8mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
350kHz
Voltage Gain
70dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L272D Datasheet
Download the complete datasheet for Stmicroelectronics L272D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

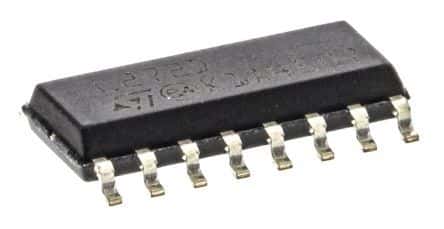

Product Images
