Four-channel push-pull driver IC with integrated diodes, suitable for brushed motor control. Features a 4.5V to 36V operating supply voltage range and a 600mA output current per channel, with a maximum collector current of 1.2A. This through-hole component, housed in a DIP package, offers a 4W power dissipation and operates from -40°C to 150°C. It includes a parallel interface and is RoHS compliant.
PackageDIP
MountingThrough Hole
Power4W
Quick Jump:
Technical Specifications
Stmicroelectronics L293D technical specifications.
General
Package/Case
DIP
Height
5.1mm
Interface
Parallel
Lead Free
Lead Free
Length
20mm
Max Collector Current
1.2A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Motor Type
Brushed
Mount
Through Hole
Number of Channels
4
Number of Outputs
2
Operating Supply Current
2mA
Operating Supply Voltage
24V
Output Current
600mA
Packaging
Rail/Tube
Power Dissipation
4W
Radiation Hardening
No
RoHS Compliant
Yes
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L293D Datasheet
Download the complete datasheet for Stmicroelectronics L293D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

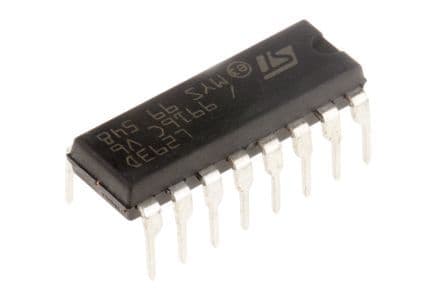

Product Images
