Dual full bridge motor driver IC featuring bipolar technology, capable of driving brushed DC motors. Offers two independent driver channels with four outputs, supporting a maximum output current of 2A per channel and a maximum collector current of 4A. Operates with a supply voltage range from 4.8V to 46V, with a typical operating supply voltage of 42V. Includes over-temperature fault protection and a low drain-to-source resistance of 930mR. Packaged in a 15-pin MULTIWATT V configuration for through-hole mounting.
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics L298N technical specifications.
General
Drain to Source Resistance
930mR
Fault Protection
Over Temperature
Height
10.7mm
Interface
Logic
Lead Free
Lead Free
Length
19.6mm
Max Collector Current
4A
Max Operating Temperature
130°C
Min Operating Temperature
-25°C
Max Output Current
2A
Min Supply Voltage (DC)
4.8V
Max Supply Voltage
46V
Min Supply Voltage
4.8V
Motor Type
Brushed
Mount
Through Hole
Number of Drivers
2
Number of Outputs
4
Operating Supply Current
13mA
Operating Supply Voltage
42V
Output Current
2A
Output Voltage
46V
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Technology
BIPOLAR
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L298N Datasheet
Download the complete datasheet for Stmicroelectronics L298N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

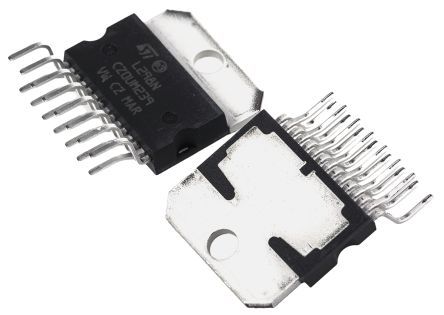

Product Images
