Dual full bridge driver IC for brushed motors, featuring 2 channels and 4 outputs. Operates with a supply voltage range of 4.8V to 46V, delivering up to 2A output current per channel. Integrated over-temperature fault protection and logic interface. Surface mountable in a SOIC package, with a low drain-to-source resistance of 930mR. RoHS compliant and lead-free.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics L298P technical specifications.
General
Package/Case
SOIC
Drain to Source Resistance
930mR
Fault Protection
Over Temperature
Height
3.3mm
Interface
Logic
Lead Free
Lead Free
Length
16mm
Max Collector Current
3A
Max Operating Temperature
130°C
Min Operating Temperature
-25°C
Max Output Current
2A
Max Supply Voltage
46V
Min Supply Voltage
4.8V
Motor Type
Brushed
Mount
Surface Mount
Number of Channels
2
Number of Outputs
4
Operating Supply Current
13mA
Operating Supply Voltage
42V
Output Current
2A
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Technology
BIPOLAR
Width
11.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L298P Datasheet
Download the complete datasheet for Stmicroelectronics L298P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

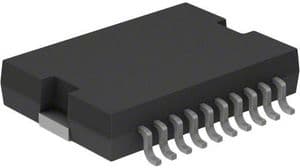

Product Images
