3.3V fixed positive output linear voltage regulator with 250mA output current capability. Features very low dropout voltage, 1% accuracy, and an inhibit function. Operates from a 3.3V supply voltage with a maximum input voltage of 20V. Packaged in SO for surface mounting, with a compact 5mm x 4mm x 1.65mm profile. Suitable for operation across a wide temperature range of -40°C to 125°C.
Frequency312MHz
PackageSO
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics L4931ABD33-TR technical specifications.
General
Accuracy
1%
Package/Case
SO
Frequency
312MHz
Frequency Stability
20ppm
Height
1.65mm
Input Bias Current
600uA
Lead Free
Lead Free
Length
5mm
Max Input Voltage
20V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
3.3V
Max Supply Current
6mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Operating Supply Voltage
3.3V
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
1mA
RoHS Compliant
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L4931ABD33-TR Datasheet
Download the complete datasheet for Stmicroelectronics L4931ABD33-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

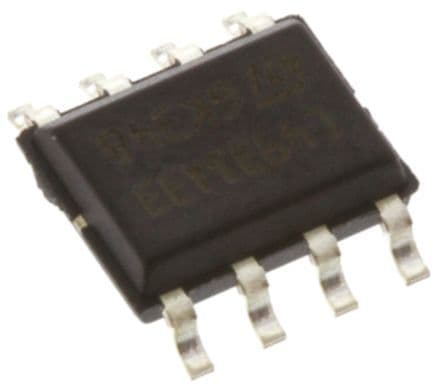

Product Images
