The L4931CZ50 is a single output linear voltage regulator from Stmicroelectronics. It has a fixed output voltage of 5V and can supply up to 250mA of current. The dropout voltage is 400mV, and it is available in a TO-226-3 package that can be mounted through a hole. The operating temperature range is from -40°C to 125°C, and it is RoHS compliant.
PackageTO-226-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics L4931CZ50 technical specifications.
General
| Package/Case | TO-226-3 |
| Dropout Voltage | 400mV |
| Input Bias Current | 600uA |
| Max Input Voltage | 20V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 2500 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L4931CZ50 Datasheet
Download the complete datasheet for Stmicroelectronics L4931CZ50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

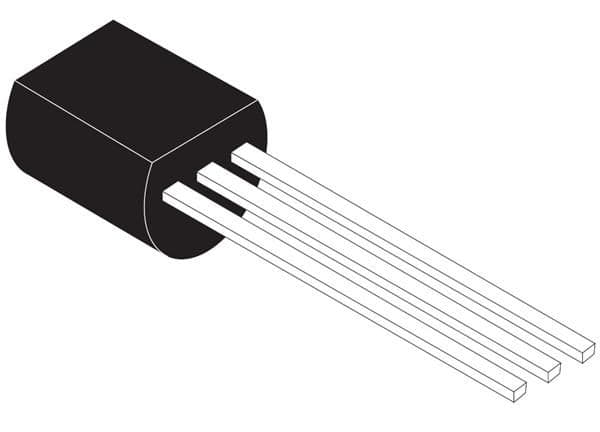

Product Images
