1.5A adjustable positive switching regulator, operating from 8V to 55V input, delivering up to 1.5A output current with a maximum output voltage of 50V and a minimum of 3.3V. This surface mount device, housed in an SO package, offers up to 85% efficiency and operates across a wide temperature range of -40°C to 150°C. Features include a 4mA supply current and RoHS compliance.
PackageSO
Current4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics L4971D013TR technical specifications.
General
Package/Case
SO
Efficiency
85%
Height
2.35mm
Lead Free
Lead Free
Length
10.5mm
Max Input Voltage
55V
Min Input Voltage
8V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
50V
Min Output Voltage
3.3V
Min Supply Voltage
8V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Adjustable
Output Voltage
50V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
4mA
Synchronous Rectifier
No
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L4971D013TR Datasheet
Download the complete datasheet for Stmicroelectronics L4971D013TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

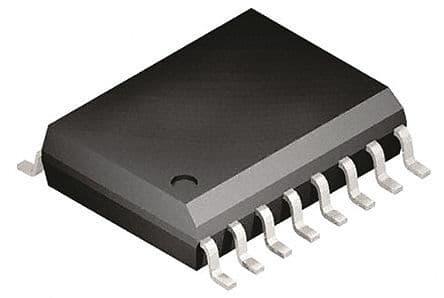

Product Images
