Synchronous step-down DC-DC controller and regulator, accepting input voltages from 4.4V to 36V and providing an adjustable output from 1.2V to 35V. Features a maximum output current of 1A and a high efficiency of 90%. Operates within a wide temperature range of -40°C to 150°C, with a switching frequency up to 250kHz. Packaged in an 8-pin SO surface-mount configuration, this RoHS compliant component is designed for reliable power management.
PackageSO
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics L5970D technical specifications.
General
Package/Case
SO
Efficiency
90%
Height
1.25mm
Lead Free
Lead Free
Length
5mm
Max Input Voltage
36V
Min Input Voltage
4.4V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
35V
Min Output Voltage
1.2V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Adjustable
Output Voltage
35V
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
3.3V
RoHS Compliant
Yes
Switching Frequency-Max
250kHz
Synchronous Rectifier
No
Weight
0.01787oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L5970D Datasheet
Download the complete datasheet for Stmicroelectronics L5970D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

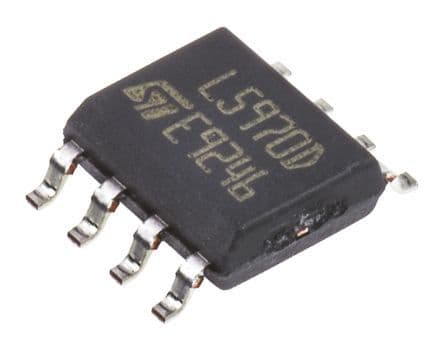

Product Images
