Dual full bridge DMOS motor driver for brushed DC motors. Features 2 channels and 4 outputs, with a maximum output current of 5.6A and a continuous output current of 2.8A per channel. Operates from 8V to 52V supply voltage, with a typical operating supply voltage of 48V. Surface mountable in a SOIC package, this RoHS compliant component offers a parallel interface and a maximum operating temperature of 125°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics L6205PD013TR technical specifications.
General
Package/Case
SOIC
Height
3.3mm
Interface
Parallel
Lead Free
Lead Free
Length
16mm
Max Collector Current
2.8A
Max Operating Temperature
125°C
Min Operating Temperature
-25°C
Max Output Current
5.6A
Max Supply Voltage
52V
Min Supply Voltage
8V
Motor Type
Brushed
Mount
Surface Mount
Number of Channels
2
Number of Outputs
4
Operating Supply Current
10mA
Operating Supply Voltage
48V
Output Current
2.8A
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STSPIN L62
Width
11.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L6205PD013TR Datasheet
Download the complete datasheet for Stmicroelectronics L6205PD013TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

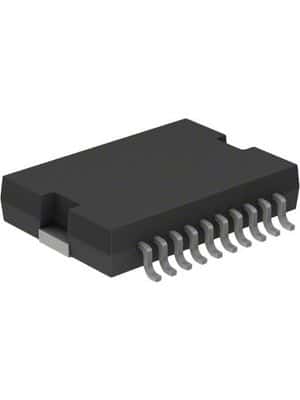

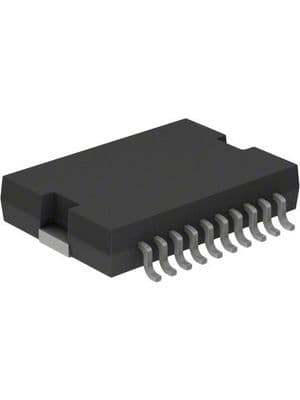

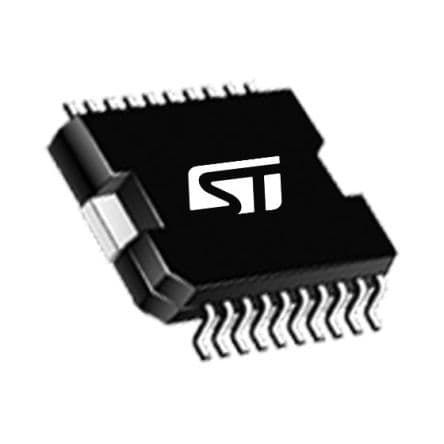

Product Images
