Dual full bridge driver for brushed motors, featuring a maximum output current of 2.8A and a maximum supply voltage of 52V. This integrated circuit offers two channels with parallel interface and operates within a supply voltage range of 8V to 52V. Packaged in a surface-mount SOIC, it supports a maximum collector current of 1.4A and an output current of 4A. Designed for demanding applications, it boasts a wide operating temperature range from -25°C to 150°C and is RoHS compliant.
PackageSOIC
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics L6225PD technical specifications.
General
Package/Case
SOIC
Height
3.3mm
Interface
Parallel
Lead Free
Lead Free
Length
16mm
Max Collector Current
1.4A
Max Operating Temperature
150°C
Min Operating Temperature
-25°C
Max Output Current
2.8A
Max Supply Voltage
52V
Min Supply Voltage
8V
Motor Type
Brushed
Mount
Surface Mount
Number of Channels
2
Number of Outputs
2
Operating Supply Voltage
48V
Output Current
4A
Output Voltage
52V
Package Quantity
31
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STSPIN L62
Supply Current
10mA
Width
11.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L6225PD Datasheet
Download the complete datasheet for Stmicroelectronics L6225PD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

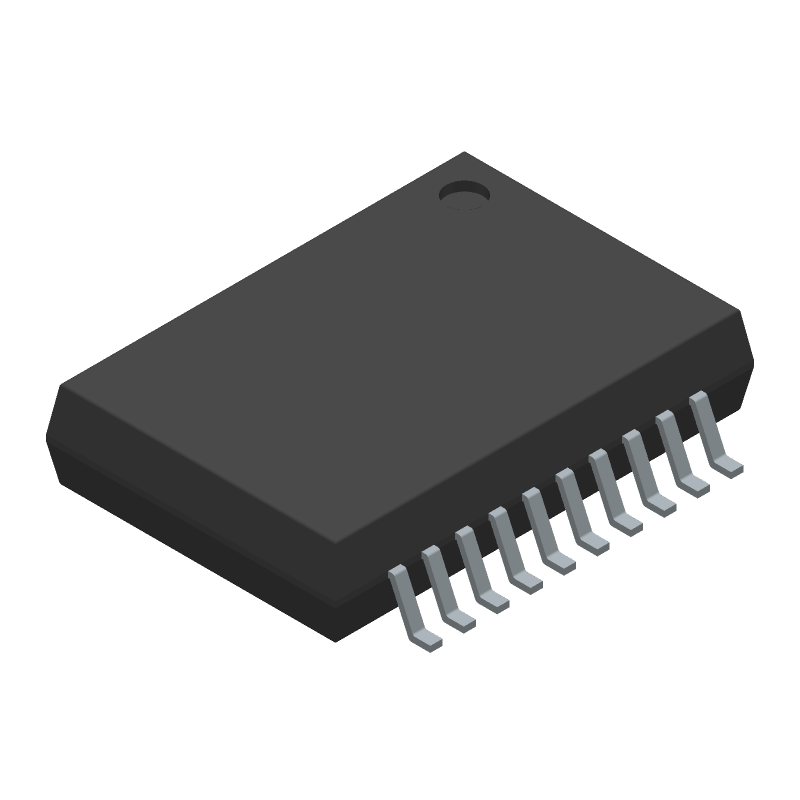

Product Images
