DMOS driver for three-phase brushless DC motors, featuring a 52V maximum output voltage and 3.55A output current. This integrated circuit operates from a 12V to 52V supply voltage, with a maximum supply current of 1.4A. Designed for surface mounting in a SO package, it offers three outputs and a parallel interface. Operating temperature range spans from -40°C to 150°C, with RoHS compliance.
PackageSO
Current1.4A
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics L6229D technical specifications.
General
| Package/Case | SO |
| Height | 2.35mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 15.6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 52V |
| Min Supply Voltage | 12V |
| Mount | Surface Mount |
| Number of Outputs | 3 |
| Output Current | 3.55A |
| Output Voltage | 52V |
| Package Quantity | 32 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STSPIN L62 |
| Supply Current | 1.4A |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L6229D Datasheet
Download the complete datasheet for Stmicroelectronics L6229D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

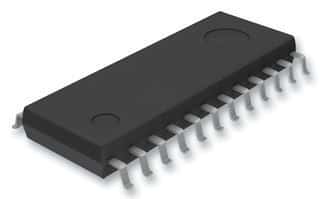

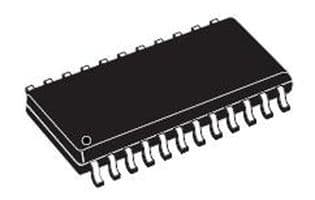

Product Images
