DMOS driver for 3-phase brushless DC motors, featuring a maximum output current of 5.6A and an operating supply voltage up to 52V. This integrated circuit operates within a temperature range of -40°C to 150°C and is housed in a QFN EP package. The component is RoHS compliant and lead-free, supplied on tape and reel.
PackageQFN EP
Quick Jump:
Technical Specifications
Stmicroelectronics L6235QTR technical specifications.
General
| Package/Case | QFN EP |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5.6A |
| Max Supply Voltage | 52V |
| Min Supply Voltage | 8V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 52V |
| Output Current | 5.6A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L6235QTR Datasheet
Download the complete datasheet for Stmicroelectronics L6235QTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

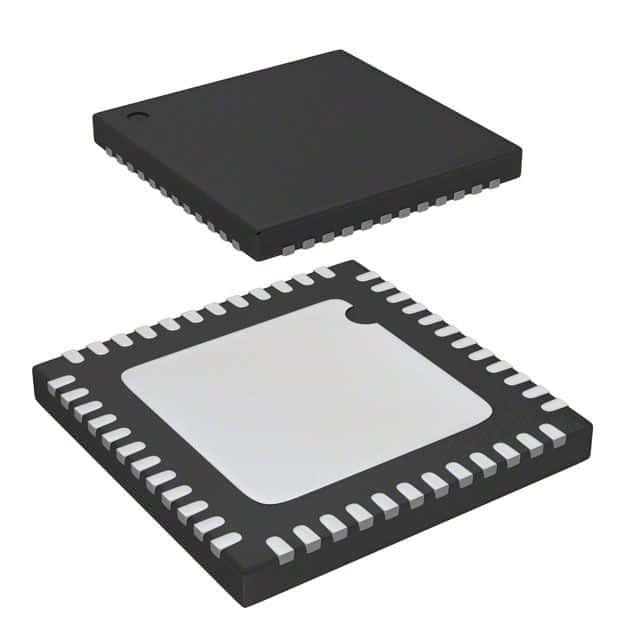

Product Images
