High-voltage, dual-channel gate driver IC for power management applications. Features embedded comparator and bootstrap diode for efficient operation. Delivers 650mA output current with a maximum frequency of 400kHz. Operates from -45°C to 125°C with a supply voltage range of -300mV to 17V. Packaged in a lead-free SOIC surface-mount case, ideal for high-density designs.
Frequency400kHz
PackageSOIC
Current320uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics L6386ED013TR technical specifications.
General
Package/Case
SOIC
Fall Time
30ns
Frequency
400kHz
Height
1.65mm
Lead Free
Lead Free
Length
8.75mm
Max Frequency
400kHz
Max Operating Temperature
125°C
Min Operating Temperature
-45°C
Max Output Current
650mA
Max Power Dissipation
750mW
Max Supply Voltage
17V
Min Supply Voltage
-300mV
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Operating Supply Voltage
15V
Output Current
650mA
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
750mW
Propagation Delay
150ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
320uA
Turn-Off Delay Time
0.00015ms
Turn-On Delay Time
150ps
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L6386ED013TR Datasheet
Download the complete datasheet for Stmicroelectronics L6386ED013TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

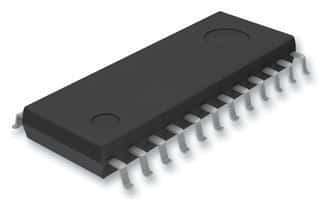

Product Images
