Fully integrated microstepping motor driver, STSPIN L64 series, featuring a motion engine and SPI interface. Operates with supply voltages from 8V to 45V, delivering up to 3A output current. Utilizes DMOS technology for efficient power management. Suitable for surface mount applications with a wide operating temperature range of -40°C to 150°C. Packaged on tape and reel, this lead-free and RoHS compliant component is ideal for advanced motor control.
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics L6472PDTR technical specifications.
General
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Supply Voltage
45V
Min Supply Voltage
8V
Mount
Surface Mount
Output Current
3A
Package Quantity
600
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
STSPIN L64
Technology
DMOS
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L6472PDTR Datasheet
Download the complete datasheet for Stmicroelectronics L6472PDTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

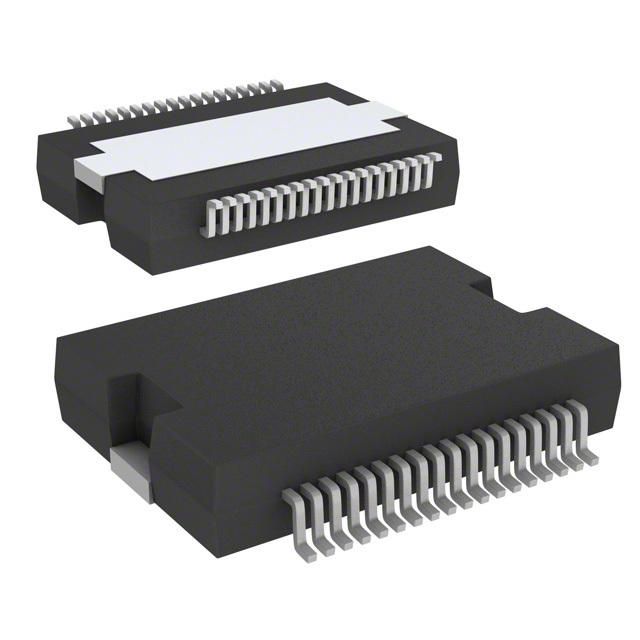

Product Images
