Stmicroelectronics
L6569AD
High Voltage Half Bridge Driver with oscillator and Integrated Bootstrap Diode
Frequency200kHz
PackageSOIC
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics L6569AD technical specifications.
General
| Package/Case | SOIC |
| Frequency | 200kHz |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 275mA |
| Max Supply Current | 25mA |
| Max Supply Voltage | 16.6V |
| Min Supply Voltage | 10V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Operating Supply Voltage | 12V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 25mA |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L6569AD Datasheet
Download the complete datasheet for Stmicroelectronics L6569AD to view detailed technical specifications.
No datasheet is available for this part.

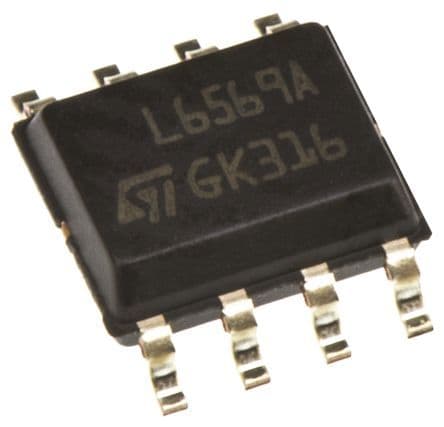

Product Images
