Positive voltage regulator IC featuring a fixed 5V output with 2% accuracy. This linear voltage regulator offers a maximum output current of 1.5A and a dropout voltage of 2V. It operates with an input voltage range from 7V to 35V and supports a wide temperature range of -40°C to 125°C. Available in a TO-263 package, this surface mount and through-hole compatible component is RoHS compliant.
PackageTO-263
MountingSurface Mount, Through Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7805ABD2T-TR technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-263 |
| Dropout Voltage | 2V |
| Height | 9.35mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Min Output Voltage | 5V |
| Mount | Surface Mount, Through Hole |
| Nominal Output Voltage | 5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 5V |
| Output Voltage Accuracy | 2% |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 68dB |
| Quiescent Current | 6mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 7.1E-05oz |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7805ABD2T-TR Datasheet
Download the complete datasheet for Stmicroelectronics L7805ABD2T-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

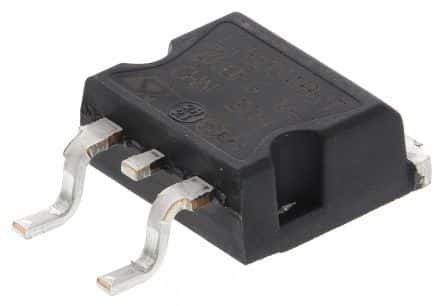

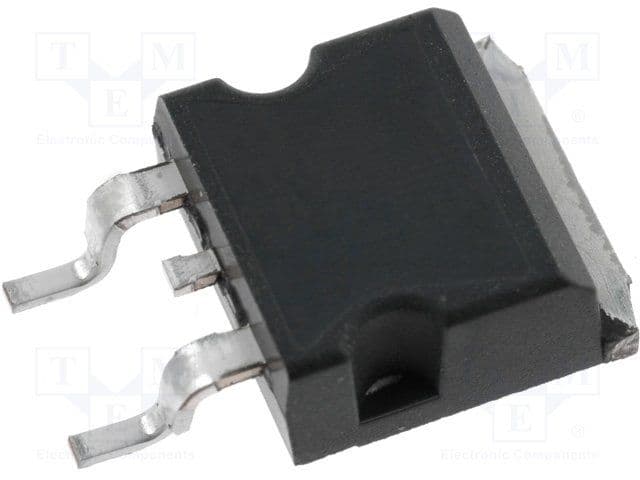

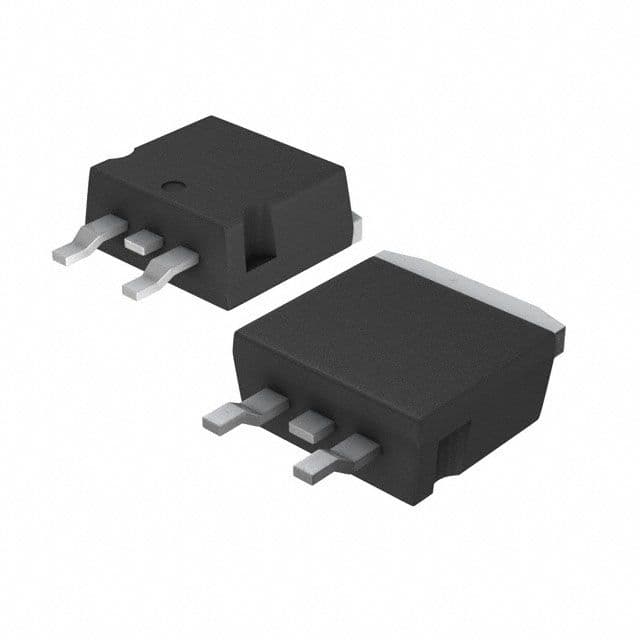

Product Images
