This positive voltage regulator IC provides a fixed 5V output with a 1.5A maximum output current. Featuring a 2% accuracy and a 2V dropout voltage, it operates from a maximum input voltage of 35V. The component is housed in a TO-220-3 package for through-hole mounting and offers a wide operating temperature range from -40°C to 125°C. It is RoHS compliant and lead-free.
PackageTO-220-3
Voltage Rating35V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics L7805ABV-DG technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-220-3 |
| Current Rating | 1.5A |
| Dropout Voltage | 2V |
| Lead Free | Lead Free |
| Max Input Voltage | 35V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Min Output Voltage | 5V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 68dB |
| Quiescent Current | 6mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 2% |
| Voltage Rating | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7805ABV-DG Datasheet
Download the complete datasheet for Stmicroelectronics L7805ABV-DG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

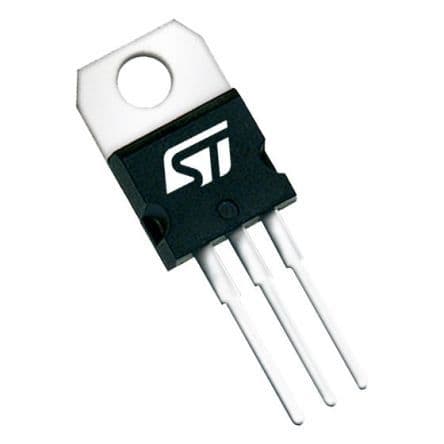

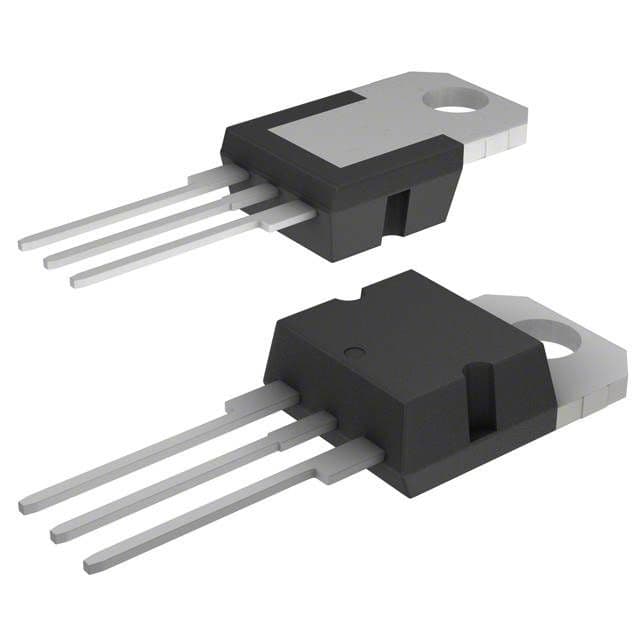

Product Images
