PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7805ACD2T-TR technical specifications.
General
| Package/Case | TO-263 |
| Lead Free | Lead Free |
| Max Input Voltage | 35V |
| Min Input Voltage | 7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 1000 |
| Packaging | Cut Tape |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 68dB |
| Quiescent Current | 6mA |
| RoHS Compliant | Yes |
| Weight | 7.1E-05oz |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7805ACD2T-TR Datasheet
Download the complete datasheet for Stmicroelectronics L7805ACD2T-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

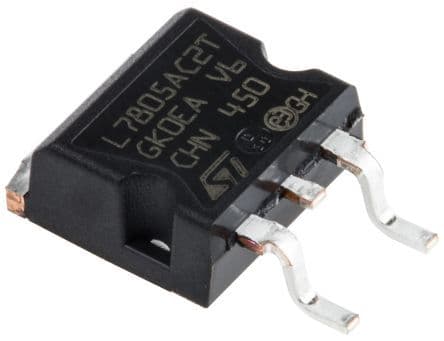

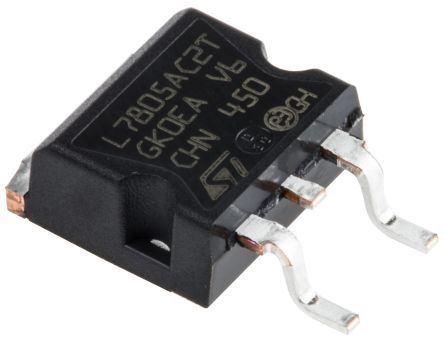

Product Images
