Positive fixed 5V output voltage regulator IC, featuring a 1.5A maximum output current and a 2V dropout voltage. This through-hole mounted component operates with a minimum input voltage of 7V and a maximum of 35V, within an ambient temperature range of 0°C to 125°C. The TO-220-3 package offers a 5% output voltage tolerance and a 62dB power supply rejection ratio. RoHS compliant and lead-free.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7805CP technical specifications.
General
| Package/Case | TO-220-3 |
| Dropout Voltage | 2V |
| Height | 9.3mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Min Output Voltage | 4.65V |
| Mount | Through Hole |
| Nominal Output Voltage | 5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 62dB |
| Quiescent Current | 8mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Weight | 0.08113oz |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7805CP Datasheet
Download the complete datasheet for Stmicroelectronics L7805CP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

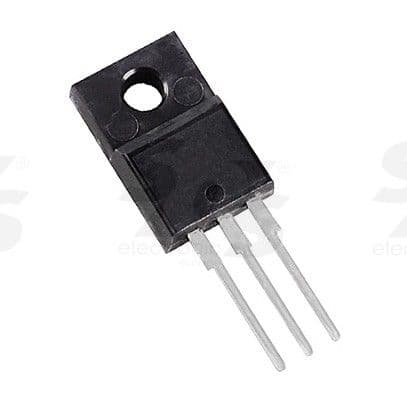

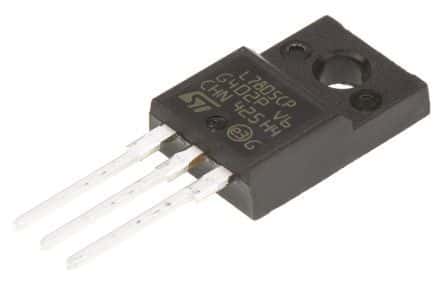

Product Images
