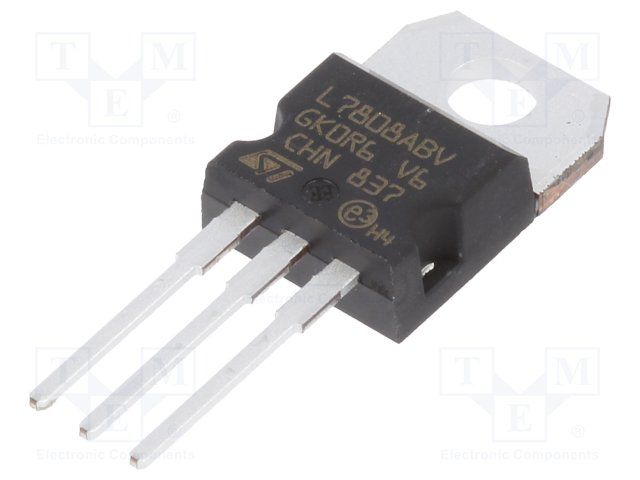

The L7808ABV-DG is a 1-output linear voltage regulator with a fixed output voltage of 8V and a maximum output current of 1.5A. It operates within a temperature range of -40°C to 125°C and is available in a TO-220-3 package, suitable for through hole mounting. The device has an accuracy of 2% and a dropout voltage of 2V, with a maximum input voltage of 35V and a minimum input voltage of 10V. It is RoHS compliant and features a power supply rejection ratio of 62dB and a quiescent current of 6mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics L7808ABV-DG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Stmicroelectronics L7808ABV-DG technical specifications.
| Accuracy | 2% |
| Package/Case | TO-220-3 |
| Dropout Voltage | 2V |
| Max Input Voltage | 35V |
| Min Input Voltage | 10V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 8V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 62dB |
| Quiescent Current | 6mA |
| RoHS Compliant | Yes |
| RoHS | Compliant |
