Positive voltage regulator IC, offering a fixed 8V output with 1.5A maximum output current. Features a 2% accuracy and a 2V dropout voltage, operating from a 10V to 35V input range. This through-hole mounted component is housed in a TO package, with a 62dB PSRR and a quiescent current of 6mA. Designed for operation between 0°C and 125°C, it is RoHS compliant.
PackageTO
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7808ACV technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO |
| Dropout Voltage | 2V |
| Height | 9.15mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 10V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Min Output Voltage | 8V |
| Mount | Through Hole |
| Nominal Output Voltage | 8V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 8V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 62dB |
| Quiescent Current | 6mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7808ACV Datasheet
Download the complete datasheet for Stmicroelectronics L7808ACV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

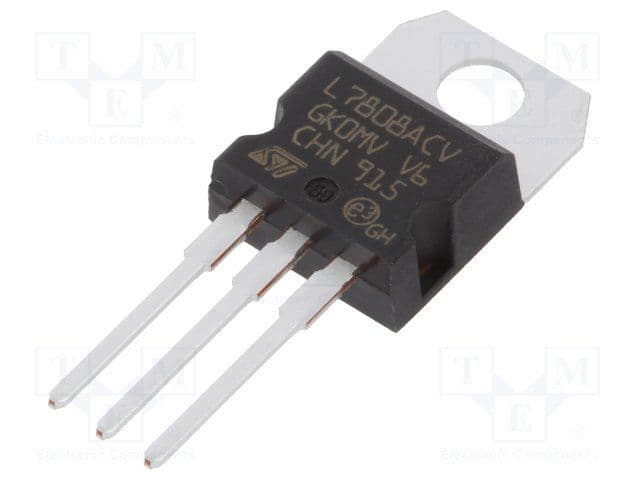

Product Images
