12V positive voltage regulator IC with a fixed output voltage and 1.5A maximum output current. Features a 2% accuracy, 2V dropout voltage, and a maximum input voltage of 35V. Operates within a temperature range of -40°C to 125°C. Packaged in a TO case for through-hole mounting. RoHS compliant.
PackageTO
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7812ABV technical specifications.
General
Accuracy
2%
Package/Case
TO
Dropout Voltage
2V
Height
9.15mm
Lead Free
Lead Free
Length
10.4mm
Max Input Voltage
35V
Min Input Voltage
14V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Min Output Voltage
12V
Mount
Through Hole
Nominal Output Voltage
12V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Fixed
Output Voltage
12V
Package Quantity
1000
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
6mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L7812ABV Datasheet
Download the complete datasheet for Stmicroelectronics L7812ABV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

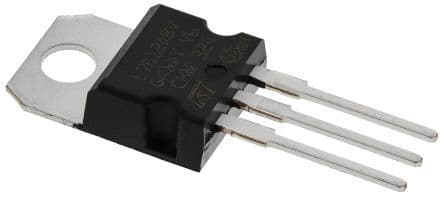

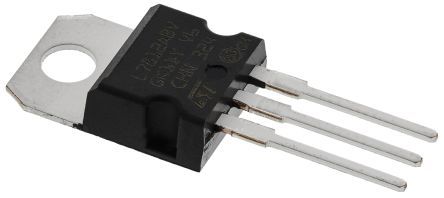

Product Images
