Positive fixed output voltage regulator IC, delivering a nominal 15V with 2% accuracy. Features a maximum output current of 1.5A and a dropout voltage of 2V. Operates with input voltages from 23V to 35V, within a temperature range of 0°C to 125°C. Packaged in a TO case for through-hole mounting, this RoHS compliant component offers a Power Supply Rejection Ratio of 58dB.
PackageTO
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7815ACV technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO |
| Dropout Voltage | 2V |
| Height | 9.15mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 23V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Min Output Voltage | 15V |
| Mount | Through Hole |
| Nominal Output Voltage | 15V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 15V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 58dB |
| Quiescent Current | 6mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 0.08113oz |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7815ACV Datasheet
Download the complete datasheet for Stmicroelectronics L7815ACV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

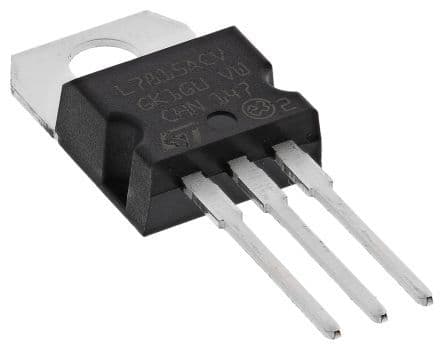

Product Images
