15V positive fixed linear voltage regulator, TO-3 package, 2-pin configuration. Features a maximum output current of 1.5A and a dropout voltage of 2V. Operates with a minimum input voltage of 17V and a maximum input voltage of 35V. Offers a 54dB power supply rejection ratio and a quiescent current of 8mA. RoHS compliant and designed for through-hole mounting.
PackageTO-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7815CT technical specifications.
General
| Package/Case | TO-3 |
| Dropout Voltage | 2V |
| Height | 8.7mm |
| Lead Free | Lead Free |
| Length | 39.5mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 17V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 15V |
| Min Output Voltage | 15V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 15V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 54dB |
| Quiescent Current | 8mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | L7815 |
| Tolerance | 5% |
| Width | 26.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7815CT Datasheet
Download the complete datasheet for Stmicroelectronics L7815CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

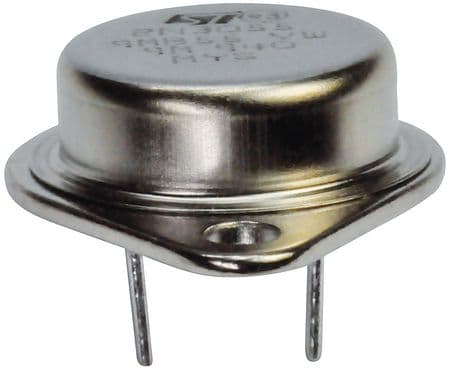

Product Images
