Positive voltage regulator IC, featuring a fixed 15V output and 1.5A maximum output current. This linear voltage regulator operates with a 2V dropout voltage, accepting input voltages from 17V to 35V. Designed for through-hole mounting in a TO package, it offers a 5% output voltage tolerance and a 54dB power supply rejection ratio. Operating across a temperature range of 0°C to 125°C, this RoHS compliant component is supplied in rail/tube packaging.
PackageTO
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7815CV technical specifications.
General
| Package/Case | TO |
| Dropout Voltage | 2V |
| Height | 9.15mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 17V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Min Output Voltage | 15V |
| Mount | Through Hole |
| Nominal Output Voltage | 15V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Fixed, Adjustable |
| Output Voltage | 15V |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 54dB |
| Quiescent Current | 8mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7815CV Datasheet
Download the complete datasheet for Stmicroelectronics L7815CV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

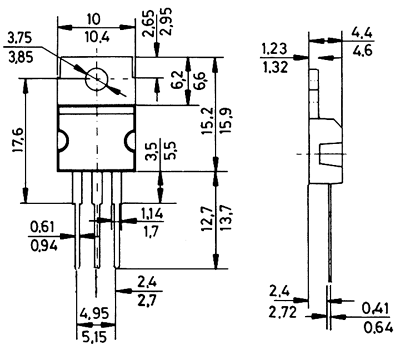

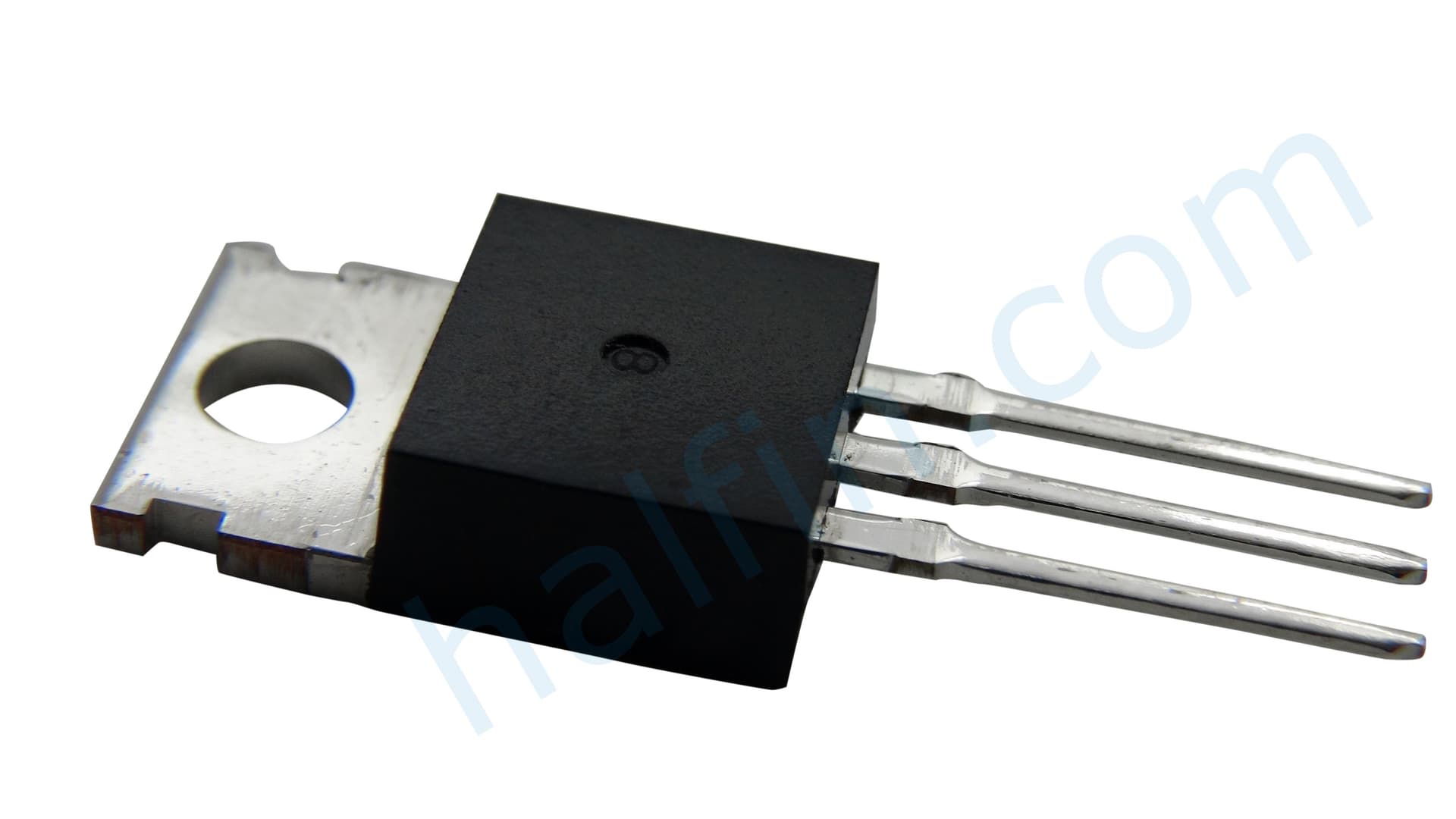

Product Images
