This positive voltage regulator IC provides a fixed 24V output with a maximum output current of 1.5A. Featuring a low dropout voltage of 2V, it operates with an input voltage range from 26V to 40V. The component is housed in a TO-263 surface mount package, measuring 10.4mm in length, 9.35mm in width, and 4.6mm in height. It is RoHS compliant and designed for operation between 0°C and 125°C.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7824CD2T-TR technical specifications.
General
| Package/Case | TO-263 |
| Dropout Voltage | 2V |
| Height | 4.6mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 26V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Min Output Voltage | 24V |
| Mount | Surface Mount |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 24V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 50dB |
| Quiescent Current | 8mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 9.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7824CD2T-TR Datasheet
Download the complete datasheet for Stmicroelectronics L7824CD2T-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

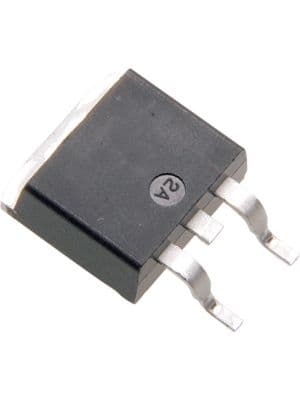

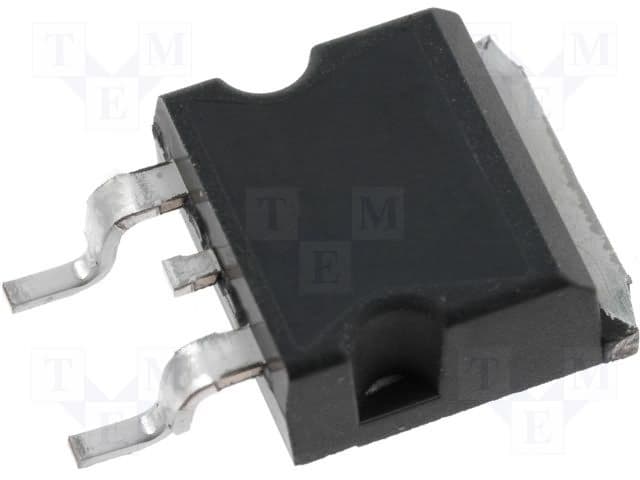

Product Images
