The L7824CV-DG is a linear voltage regulator with a dropout voltage of 2V and a maximum output current of 1.5A. It operates over a temperature range of 0°C to 125°C and is packaged in a TO-220-3 case with a lead-free finish. This regulator is suitable for use in a variety of applications, including power supply rejection ratio (PSRR) of 54dB and a quiescent current of 8mA.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7824CV-DG technical specifications.
General
| Package/Case | TO-220-3 |
| Dropout Voltage | 2V |
| Lead Free | Lead Free |
| Max Input Voltage | 40V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 24V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 54dB |
| Quiescent Current | 8mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7824CV-DG Datasheet
Download the complete datasheet for Stmicroelectronics L7824CV-DG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

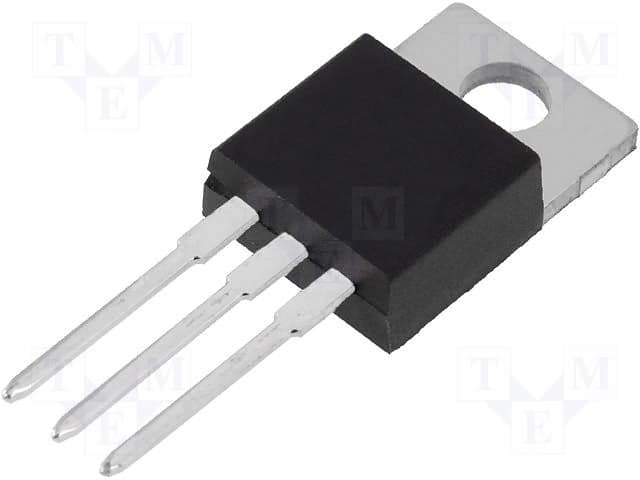

Product Images
